Tilt Detection IoT Device

A custom IoT hardware design and embedded engineering project featuring a compact PCB equipped with an accelerometer and Bluetooth Low Energy (BLE 5.0) to real-time monitor machine tilt, orientation, and operational stability.

Build Something Similar

Timeline: 2 Months
Industry: Manufacturing
Service: Development

AI Automation
Advertising
Designing
Development
Digital Marketing
MVP
Resource Hiring
Shoot

Overview

This project involved designing a specialized hardware sensor node to detect angular tilt and mechanical displacement in industrial machinery. Built around an integrated accelerometer, micro-controller, PCB trace antenna, and BLE 5.0 connectivity, the compact module captures real-time motion metrics and transmits tilt telemetry wirelessly for predictive maintenance and safety monitoring.

The Goal

The primary objective was to design and manufacture an ultra-compact, low-power hardware sensor board featuring an onboard accelerometer and BLE 5.0 wireless module to accurately measure multi-axis tilt, detect machine instability, and alert operators to structural anomalies in real time.

What We Built

We developed a custom PCB layout integrating a high-precision accelerometer alongside a BLE 5.0 chipset and trace antenna for reliable wireless communication. Embedded firmware was engineered to sample motion data, calculate real-time tilt angles, optimize power consumption, and broadcast low-latency diagnostic alerts over Bluetooth.

Key Features

Real-Time Tilt Detection
High-Precision Accelerometer
BLE Wireless Telemetry
Ultra-Compact PCB Form Factor
Low-Power Optimization
Predictive Maintenance Alerts

Results

The project successfully delivered a robust, production-ready tilt-detection hardware sensor that enables continuous wireless monitoring of industrial equipment, preventing operational hazards, minimizing downtime, and ensuring machine stability in heavy-duty environments.

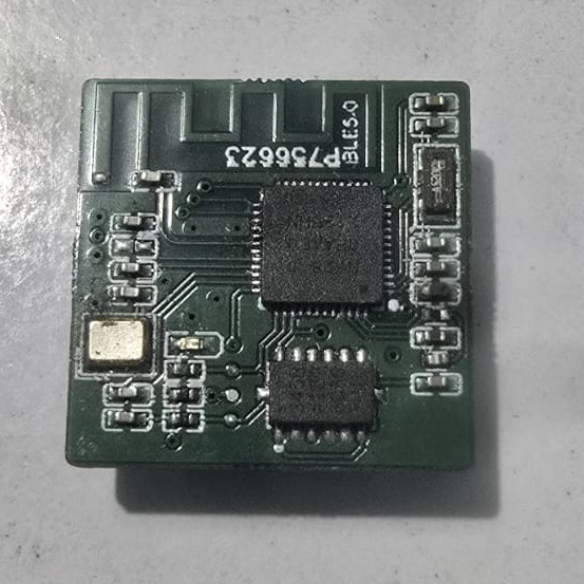

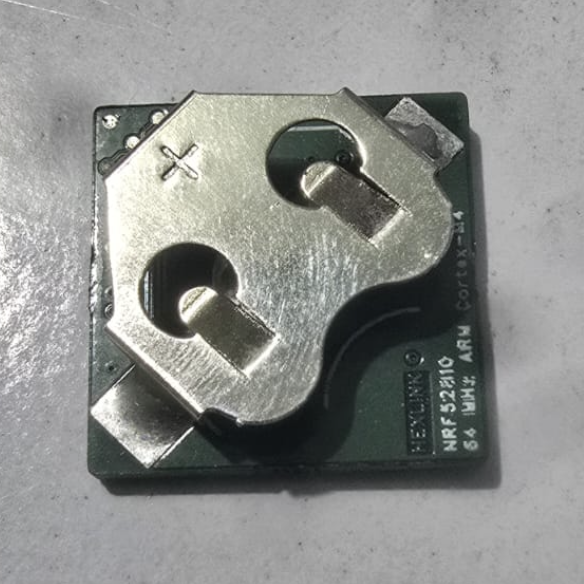

More From the Project

2 screens · tap to enlarge

“The tilt-detection module engineered for our machinery has completely transformed our equipment safety monitoring. The ultra-compact hardware integrated effortlessly into our setups, and the real-time BLE telemetry gives our team instant visibility into mechanical stability and alignment. It has significantly reduced unexpected downtime and made predictive maintenance far more efficient.”

Tilt Detection IoT Device team
